This is my Fine Molds Keiun. She was basically built OOB. I just added some minor cockpit detail.
The underside was sprayed with Tamiya orange-yellow. The rest of the plane is hand-brushed (Tamiya IJN Green, the props are a mixture of brown, red and black). I gave it some minor exhaust-traces and finished her with clear-matt.
As I still have no better camera at my side I again had to rely on my cell-phone. So excuse the quality of the photos!

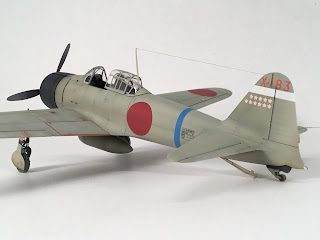

Tamiya Zero kits have been on the market for many years. While not as detailed as more current releases, they still build into respectable models.
I added a few details to the cockpit and re-scribed a few panel that that were lost during construction. Ignition wires for the engine and brake lines for the landing gear were fabricated from soft wire. I used Floquil aged concrete and light grey for the much debated grey/green. The tail markings are from an old AeroMaster decal sheet and I am not 100% sure of their accuracy. I chose to paint the tail band blue as I liked how this looks against the grey/green. I guess one could consider this model more fiction than fact, but I feel Floquil aged concrete is a respectable match for the overall color.
After participating in the Aleutian Operations, Seaplane Tender Kamikawa Maru, returned to Yokosuka in August 1942. While there, a seaplane fighter group was organized and the ship departed on August 23 with 11 Nakajima A6M2-N "Rufe" and two Mitsubishi F1M "Pete" seaplanes. After passing through Rabaul, they arrived in Shortland Islands in the Solomon Islands Archipelago, on September 4.
The Kamikawa Maru seaplanes together with those of Seaplane Tender Chitose (16 "Pete" or "Dave" and seven "Jake" or Kawanishi E7K "Alf") were based in the small Poporang Island, next to Shortland Island, while the seaplanes of Sanyo Maru (six "Pete" or "Dave" and two "Jake" or "Alf") and Sanuki Maru (eight "Pete") were based in Shortland Island. CO of the Kamikawa Maru "Rufe" group was Capt Ono Jiro and the small unit was under the command of the 11th Koku Sentai (Air Flotilla or Seaplane Tender Division). Below is a listing of most of the unit actions with emphasis on enemy encounters.
According to the book “World War II Sea War, Vol 6: The Allies Halt the Axis Advance” (hereafter Sea War) by Donald A Bertke, Gordon Smith and Don Kindell: “The Japanese Eighth Fleet created the "R" Area Air Force under Rear Admiral Jojima Takatsugu. IJN seaplane carrier CHITOSE was assigned to the No. 1 Group of the 11th Seaplane Tender Division with seaplane tender KAMIKAWA MARU. The seaplane tenders SANUKI MARU and SANYO MARU were in No. 2 Group of the 11th Seaplane Tender Division. The seaplane unit was to augment the land-based IJN aircraft in the Guadalcanal area. The unit used E13A1 "Jake" monoplane aircraft for long-range reconnaissance and anti-submarine missions, Type 2 Nakajima A6M2-N "Rufe" single-seat float fighter, and F1M2 aircraft for light bombing, convoy-escort duty and to complement the A6M2-Ns in the fighter role. The R-Area Air Force was based in Shortland Harbor, but Rekata Bay on Santa Isabel Island, 135 miles northwest of Lunga Point on Guadalcanal, served as the unit's forward staging base. All aircraft of CHITOSE were landed and transferred to the R-Area Air Force at Shortland CHITOSE herself began repairs, probably by repair ship AKASHI at Truk, and then departed for Yokosuka, Japan. KAMIKAWA MARU supported air strikes from Shortland Island.”
The Izawa entries are indicated with the letter I- in the beginning, the Kodochosho with the letter K-.
I- On the very same day they arrived in Shortland Islands, two "Rufe" seaplanes flown by WO Kawamura and PO2c Matsumoto took off on a patrol mission. Over Buin, on Bougainville Island at an altitude of 3,000 meters a B-17 was spotted and attacked with unknown results due to heavy clouds.
K- Between 10:00 and 17:10 four "Rufe" seaplanes took off on patrol around the base. Two of them located one enemy B-17 bomber which they attacked inflicting serious damage. One "Rufe" was shot but damage is reparable. On that day the base on Poporang Island is completed and patrol boat number 36 transported personnel to Rekata.
WO Kawamura and PO2c Matsumoto took off at 09:55. At 10:15, while flying at an altitude of 4000m, located enemy one B-17 at a distance of 3000m flying at 5000m over Buin. Both "Rufe" attacked one after the other from the front lower left of the bomber. One "Rufe" hid in the clouds while the other continued to attack twice from the lower back of the bomber and broke contact. The other "Rufe" hiding in the clouds continued to follow the bomber for some distance. Both fighters returned to base at 11:45. Ammunition used: 20mmX217, 7.7mmX400. Fuel used: 500li. Attack time: 10:15~10:50 at 5000m, results unknown. Damage: Matsumoto's "Rufe" received three bullet holes. Weather: half clear, clear view to a distance of 30km.
The very detailed Kodochosho entry is accompanied by a small map that shows the way the "Rufe" seaplanes attacked the B-17. The "Rufe course is indicated by the dash line, the B-17's with the straight.
At 13:00 PO2c Oyama and PO1c Kuwajima took off on patrol, NEC (No Enemy Contact), returned to base at 15:10.
I- Five times patrol over the base and provided air cover flying over a patrol ship twice. On that day a new base was completed at Rekata Bay, on the northeast coast of Santa Isabel Island.
K- From 05:00 until 14:30 ten "Rufe" seaplanes took off on patrol without any incidents. At 08:00 and at 11:00 the air alarm was given and five "Rufe" on stand by took off but NEC. From 07:30 until 13:00 four "Rufe" and two "Pete" provided air cover for the Patrol Ship No. 36. The base on Rekata was completed. "Rufe" pilots: Kuwajima, Oyama, Kofuji, Watanabe, Kawai, Maruyama, Ono, Shimura, Kawamura, Matsumoto. "Pete" pilots: Nishiyama and Omura; observers: Aono, Fujimura.
I- Patrol same as the previous day.
K- From 07:00 until 14:15 six "Rufe" and three "Pete" seaplanes escorted Patrol Ship No.36 without any incidents. From 07:00 until 15:00 two "Rufe" are always on stand-by at the base.
I- Four "Rufe" seaplanes located over the base one B-17 at an altitude of 8,000 meters. They tried but failed to catch the enemy aircraft.
K- From 05:00 until 15:00 "Rufe" seaplanes made 18 exits on patrol. At 13:05 one B-17 bomber was located at an altitude of 8000m by four "Rufe" on patrol but the enemy escaped in a Western direction.
Two "Pete" seaplanes escorted ships of the 24 DesDiv without any incidents from 11:45 until 14:30.
One "Pete" dropped documents for the headquarters on Rekata Base.
One "Rufe" attacked a lone B-17 but could not inflict any damage due to gun failure. Two more "Rufe" seaplanes flew reconnaissance mission over Guadalcanal Island shooting down one Grumman F4F Wildcat.
In the book “Air War Pacific: Chronology: America’s Air War Against Japan in East Asia and the Pacific, 1941 – 1945” Eric Hammel has the following for September 14: “At 1730 hours, two low-flying A6M2-Ns based at Rekata Bay, Santa Isabel, down a USMC SBD returning from a search mission. The SBD's pilot and gunner are both killed.”
Five "Rufe" seaplanes located and attacked one B-17 over Rekata bay. During Kawai Jiro's attack the enemy aircraft started emitting white smoke but was not shot down.
The same day three "Rufe" flew reconnaissance over Guadalcanal but didn't return.
Two more "Rufe" flew to Guadalcanal and encountered two F4Fs. One "Rufe" and one Wildcat were shot down. Hammel:“VF-5 F4F pilots down four A6M2-Ns over Guadalcanal at about 1000 hours”
Two "Rufe" located four B-17s over Buin Island at an altitude of 8,000m. They tried to attack but the enemy managed to escape with no damage.
September 23 Hammel:“11th Heavy Bombardment Group B-17s attack the IJN seaplane base at Rekata Bay, Santa Isabel.”
Two "Rufe" again spotted four B-17s over Buin Island. Two of the enemy bombers were damaged during the attack. Two other "Rufe" seaplanes saw what was happening and joined the attack. One of them followed the enemy for 110 kilometres, spending all the ammunition and damaging two engines of one bomber. Another "Rufe" was hit and had to make an emergency landing at Mono Island. Although the seaplane flipped over the pilot was unhurt. Hammel:“SOLOMON ISLANDS: Four 11th Heavy Bombardment Group B-17s staging through Guadalcanal/Henderson Field attack cargo vessels near the Shortland Islands. One of the B-17s is downed by an A6M over Buin.”
Two B-17s were attacked on that day. Hammel:“11th Heavy Bombardment Group B-17s strafe the IJN seaplane base at Rekata Bay.”
Two "Rufe" attacked eight B-17 over Shortland Island. One enemy bomber was shot down by PO1c Maruyama. Hammel:“SOLOMON ISLANDS: Eight 11th Heavy Bombardment Group B-17s attack shipping in Tonolei harbor.”
On September 27, 29 and on October 4 there were battles with B-17s but with no results.
For September 29 Hammel:“SOLOMON ISLANDS: Ten 11th Heavy Bombardment Group B-17s attack transports and an IJN warship in the Shortland Islands. One B-17 is lost.”
Hammel:“SOLOMON ISLANDS: The entire Hornet Air Group, less a strong combat air patrol of F4Fs, is dispatched before dawn against the IJN's "Cactus Express" jumping-off point in the Shortland Islands. Bad weather breaks up the group formation, and many aircraft find no targets. However, several small ships are damaged in Tonolei harbor. Two A6M2-Ns are downed, including one by a TBF pilot. During the rest of the day, VF-72 F4F pilots down one large patrol bomber and two G4Ms that are searching for the withdrawing USS Hornet.
Thirteen 11th Heavy Bombardment Group B-17s attempt to attack Buka Airdrome, but bad weather prevents all but one from locating a target; and bad weather also dilutes an effort by Cactus Air Force SBDs and TBFs dispatched against the IJN seaplane base at Rekata Bay. One B-17 is downed by IJN fighters.” Sea War on October 4:“IJN destroyers AYANAMI, MURAKUMO, SHIGURE (F), SHIRAYUKI and FUBUKI made a troop transport run to Guadalcanal. A6M2-N and F1M2 aircraft from IJN seaplane tender KAMIKAWA MARU escorted the convoy in bad weather. Five USN aircraft of VF-72 Squadron and US Marine Wildcat aircraft from Henderson Field and the USN air-craft carrier HORNET (CV-8) attacked the convoy. A "Pete" aircraft from the KAMIKAWA MARU took off as US aircraft began attacking the convoy. Several Wildcat aircraft attacked the "Pete" aircraft, but its pilot ditched his damaged aircraft southeast of Ballale Island, Bougainville. Three Fl M2 aircraft from the IJN seaplane tender KUNIKAWA MARU attacked an USN SBD aircraft of VS-71 Squadron and forced it to ditch in the water, but the crew was later picked up by a Grumman J2F-5 "Duck" float-plane and rescued.” and “An IJN "Pete" aircraft (PO Katsuki Kiyomi) from IJN seaplane carrier CHITOSE spotted four US fighter and five B-17 aircraft. To prevent the bombers from hitting the seaplane carrier NISSHIN, Katsuki dove on the leading B-17E of the 72nd Bomb Squadron. He rammed the bomber from below, tearing the right main wing and the vertical stabilizer off the B-17 and damaging his own right wing. Katsuki and his observer bailed out. IJN destroyer AKITSUKI rescued both men. The B-17 crew was lost. According to researcher Sakaida. Lt. David C. Everitt, Jr. piloted the B-17. PO Katsuki survived the war. He became one of only two IJN floatplane aces in WW2. His final score was sixteen aircraft shot down, seven while he was flying floatplanes including Fl M2, A6M2-N and N1K1 aircraft.”
Hammel:“Between 1655 and 1745 hours, VF-5 F4F pilots down three IJN float fighters near Guadalcanal; and a VS-71 SBD gunner downs a float fighter in the same area at 1825 hours.”
Three "Rufe" and one "Pete" seaplane provided escort to the supply ship Nisshin heading towards Guadalcanal. "Rufe" pilots were Ltd Ono, WO Kofuji and PO2c Nishiyama. Kofuji fought against seven SBDs shooting down one and one more probable, while Nishiyama fought against P-39s shooting down two.
Hammel:“SOLOMON ISLANDS: Three 339th Fighter Squadron P-39 pilots on temporary duty with the 67th Fighter Squadron down three IJN float biplanes over New Georgia Sound 150 miles from Guadalcanal/Henderson Field at 0700 hours.”
Two "Rufe" provided escort to Light Cruiser Tatsuta and the 15 Kuchiku-tai. Battle against 20 enemy fighters, nine carrier bombers and six torpedo planes. More than four enemy aircraft were shot down by AA fire from the escorting destroyers but two "Rufe" failed to return. Hammel:“SOLOMON ISLANDS: USMC F4F pilots down ten INN floatplanes over New Georgia Sound and Rekata Bay at 0640 hours. Maj John L. Smith, the VMF-223 commanding officer, brings his final personal tally to 19 victories when he downs an A6M2-N over Rekata Bay at 0640 hours.”
The 14th Suisentai was established.
On that day "Rufe" seaplanes flew ship escort and patrol missions in the Shortland and Rekata Bay areas.
One Kamikawa Maru "Rufe" with three more from the 14Ku fought against five B-17s and 10 carrier bombers over their area of operations. No results were observed.
One Kamikawa Maru "Rufe" with three more from the 14Ku fought against six F4F and two SBD. One of the Kamikawa Maru "Rufe" seaplanes was shot down while attempting to take off. Hammel:“SOLOMON ISLANDS: During a dawn attack against the IJN seaplane base at Rekata Bay, VMF-212 F4F pilots down three A6M2-N float fighters and two float biplanes at 0515 hours. lstLt Frank C. Drury, a VMF-212 F4F pilot, achieves ace status when he downs an A6M2-N over Rekata Bay at 0515 hours; and Capt Jack E. Conger, a VMF-212 F4F ace, brings his final personal tally to 10 victories when he downs an F1M and an A6M2-N over Rekata Bay at 0515 hours.”
Six "Rufe" seaplanes located one B-17 east of Mono Island. One "Rufe" was hit, fell in the sea and the pilot died.
November 5 - 6
Patrol missions but no air battles.
One Kamikawa Maru "Rufe" with five more from the 14Ku fought against eight F4F over their area of operations. All "Rufe" seaplanes failed to return. On that day the last Kamikawa Maru pilot was KIA. Hammel:“Late in the afternoon, seven VMSB-132 SBDs and three VT-8 TBFs, escorted by 12 67th Fighter Squadron P-39s, are dispatched against 11 IJN troop-carrying destroyers located by search planes 125 miles from Guadalcanal. While attacking two IJN destroyers, the bombers are challenged by 10 A6M2-Ns and F1Ms, with the result that only near misses are scored. In running fights, three 67th Fighter Squadron P-39 pilots down two A6M2-Ns and an A6M near Santa Isabel, and three 67th Fighter Squadron P-39 pilots down an A6M2-N and two other floatplanes near Guadalcanal. As more IJN fighters join the battle, they are met by 21 Cactus Air Force F4Fs. In the widening melee, SBD gunners down two A6Ms, and USMC F4F pilots claim four A6M2-Ns and three FIMs. One F4F is downed and its pilot (2dLt Cecil J. Doyle, a VMF-121 ace) is lost, and three F4Fs ditch due to fuel depletion, but their pilots are rescued. 2dLt William P. Marontate, a VMF-121 pilot, achieves ace status when he downs an FIM and two A6M2-Ns over Rekata Bay during the late afternoon. A VT-8 TBF crew downs an IJN floatplane near Florida Island at 1730 hours. The last remaining pilots and aircrewmen from VS-71 are evacuated from Guadalcanal.”
There is one classic photo of Kamikawa Maru loaded with "Rufe" I found here.
The tail markings of two seaplanes are visible and as usual our good friend Devlin Chouinard created artwork. As you can see the "Rufe" unit used the tail marking "YII-".
The best published version of the above photo can be found in the publication "Maru Extra #2", January 1997 and a lot of interesting details can be gleaned.
First up the tail markings.
The rudder of YII-105 is secured in place with that whatchamacallit and so we can see that the fabric surfaces are lighter in color than the metal; similar to the "Rufe" in the Aleutians. Note also that the marking is a combination of serif and sans-serif. The top of the "Y" letter is sans-serif, the bottom has serifs. The "II" have serifs.
The tail marking of the "Rufe" behind "YII-105" is not visible in low quality photos, but in the "Maru" Extra #2" is clear it is "YII-101". While the "105" has the marking applied on a previously unpainted surface, in the "101" it seems there was a previously applied marking which was overpainted and the "YII-101" was painted over. Again notice the lighter color of the fabric rudder. Unfortunately the tail markings of the "Rufe" seaplanes behind them are not visible at all.
Right below the main float air scoop of the "YII-101" the number "1" in red (or black) can be gleaned. It was not a rare practice to repeat the last digit(s) of the tail marking on that place as we will see in future postings.
Another interesting and quite unusual detail is a peculiar thing attached over the main float's fuel tank filler cap and purging system. From all the "Rufe" photos, only these "YII" seaplanes have it. Any ideas as to what it could be are welcome.
And finally of interest is the dolly over which the "Rufe" seaplanes are secured. It looks highly complex and of a different design than the catapult dolly.
In the same "Maru Extra #2" there is one more very beautiful photo of the Kimikawa Maru "Rufe" seaplanes on their base in Poporang Island. Below are two close-ups I'm sure modellers will find inspirational.
In the photo below apart from the "Rufe" seaplane with the cowling removed, of interest are the tents in the background but also the Daihatsu landing craft.
And some more information from here. (20 horses could fit in there??? Really? In what scale?)
The second close-up features four "Rufe" seaplanes. The tail marking of the one on the right could either be "YII-106" or "YII-108" and the fuselage looks to be quite dirty. Notice also the thing on the main float between the main pylon and the V strut all four of them have. The three from the right have their rudders turned so they look as if they are darker or lighter but the one on the extreme left has a straight rudder which does not show any color difference.
All "YII" "Rufe" seaplanes have the twin white bands on the fuselage. This has been explained as indicating the flight leader but obviously this suggestion is not correct. Instead, the bands indicate the second ship of the 11th Seaplane Tender Division, i.e. Kamikawa Maru. The floatplanes of the other seaplane tender, Chitose, had tail marking "YI-" and one band on the fuselage.
As always, this post will be updated as new information comes in.
